This Pro-Line Standard Density ESD Top Retractable Ball Transfer Workstation features an E.S.D. electro static discharge top and heavy duty 2-inch square tubular legs which offer stability and aesthetics. It has standard 6 x 6 inches ball pattern and require 80 PSI of shop air to operate. It features pop-up ball transfers which assist in transfer and positioning of materials in production. Ball transfers raise 0.250-inch above surface by activating pneumatic toggle switch. Work in process is then slid on to station. When load is in position, ball transfers are retracted and load is stabilized. Modular design allows for mounting of optional accessories. Leg extenders allow surface height to be set from 30 inch to 36 inch and Workstation is available in a variety of sizes and also available in half or full length coverage of surface.
|
|
|
|
|
|
|
|
|
|
|
|
-
Work Surfaces-old: Electro static discharge surface
-
Capacity: Half coverage: 200.00 lbs
Full coverage: 400.00 lbs
-
Storage-Old: With drawer
-
Size: 48.00 in L x 30.00 in W, 48.00 in L x 36.00 in W, 60.00 in L x 30.00 in W, 60.00 in L x 36.00 in W, 72.00 in L x 30.00 in W, 72.00 in L x 36.00 in W
-
Additional Features: Modular
-
Number of Drawers -Old: 1
-
Mounting Type: Floor
-
Heights: 30.00, 36.00 in
-
Legs: Heavy duty 2.00 x 2.00 in tubular legs
-
Wheels: No
-
Pegboard: No
-
Weight: 48.00 inch W x (30.00 x 36.00) D inch: 162.00 to 207.00 lbs
60.00 inch W x (30.00 x 36.00) D inch: 180.00 to 235.00 lbs
72.00 inch W (30.00 x 36.00) D inch: 205.00 to 265.00 lbs
-
Lockable Cabinet: No
-
Foldable: No
-

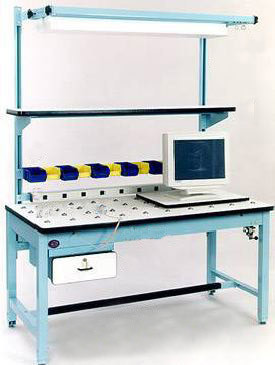

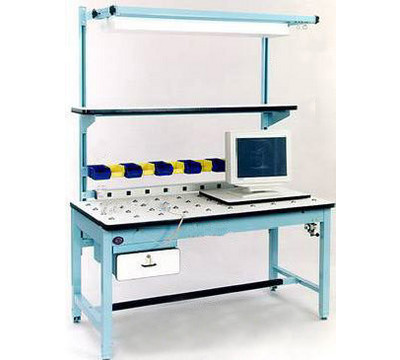

Shown with Optional: Computer monitor
Product Overview & Specs
This Pro-Line Standard Density ESD Top Retractable Ball Transfer Workstation features an E.S.D. electro static discharge top and heavy duty 2-inch square tubular legs which offer stability and aesthetics. It has standard 6 x 6 inches ball pattern and require 80 PSI of shop air to operate. It features pop-up ball transfers which assist in transfer and positioning of materials in production. Ball transfers raise 0.250-inch above surface by activating pneumatic toggle switch. Work in process is then slid on to station. When load is in position, ball transfers are retracted and load is stabilized. Modular design allows for mounting of optional accessories. Leg extenders allow surface height to be set from 30 inch to 36 inch and Workstation is available in a variety of sizes and also available in half or full length coverage of surface.
- Ball transfers raise .250" above surface by activating pneumatic toggle switch
- Standard 6" x 6" ball pattern
- Require 80 PSI of shop air to operate
- Pop-up ball transfers assist in transfer and positioning of materials
- 2" Square tubular legs
- Leg extenders allow surface height to be set from 30" to 36"
- Available in half or full length coverage of surface
- Available in different sizes
|
|
|
